Manitowoc IDT-0420A-161 - 335 lbs Indigo Series Cube Ice Maker - Air Cooled

Product Code
id-0322a-161
$2,902.00

Measurements

Weight
185 lbs
Length
26 in
Width
29 in
Height
26 in

Details

Manitowoc's Indigo™ Series comes with many great features restaurant owners will enjoy. The Indigo Series features an intelligent diagnostics system designed to monitor and collect valuable information about energy and water consumption as well as ice production levels. Also, the intelligent diagnostics system gives alerts whenever issues arise and provides service technicians with important data to quicken the maintenance process. Furthermore, the Indigo Series allows restaurant owners to customize the amount of ice produced to fit the needs of the restaurant. With features like these, the Indigo Series of ice machines will be a welcome addition to any commercial kitchen.

  • Intelligent diagnostic system monitors and collects information about energy and water consumption as well as ice production levels.
  • Diagnostic system also sends alerts whenever issues arise and provides service technicians with important data to quicken the maintenance process.
  • Programmable ice production allows owners to control the amount of ice produced to fit the needs of the restaurant.

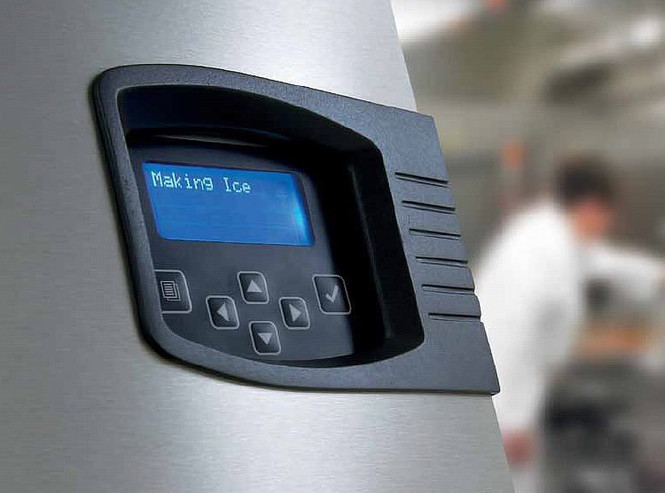

  • Digital display shows operating status and provides cleaning reminders.

Helpful Blog Articles:

Hardwired

This product does not come with a cord and will need to be hardwired by an electrician when it is installed



Please note that this unit is in 115 volt. Please feel free to give us a call or send us an email to inquire about the 208 volt version.

Features

Standard Features

  • Ice-sensing probe measures ice thickness to ensure ice cube consistency.
  • Ice clarity feature improves the quality of ice with even the hardest of water.
  • Water-trough, distribution tube, curtain, and sensing probes are easily removed to allow periodic cleaning.
  • Digital display shows operating status and provides cleaning reminders.
  • Smaller design helps consolidate space in a kitchen.
  • Intelligent diagnostic system monitors and collects information about energy and water consumption as well as ice production levels.
  • Diagnostic system also sends alerts whenever issues arise and provides service technicians with important data to quicken the maintenance process.
  • Air cooled model is Energy Star approved, resulting in a reduction in energy consumption.
  • Programmable ice production allows owners to control the amount of ice produced to fit the needs of the restaurant.
  • Duratech™ exterior provide a sleek, corrosion-resistant finish.
  • Unit produces dice cubes.
  • Bin is purchased separately. Recommended bins include D-170 and D-420.
  • Warranty: 3 year parts and labor for the ice maker / 5 year parts and labor for the evaporator / 5 year parts and 3 year labor for the compressor.

Specifications

Specifications
Manufacturer: Manitowoc
SKU: IDT-0420A-161
Ice Shape: Dice
Ice Cube Dimensions: 7/8 x 7/8 x 7/8 in
24 Hour Ice Production at 70° Air / 50° Water: 335 lbs
24 Hour Ice Production at 90° Air / 70° Water: 225 lbs
Power Usage per 100 LBS: 7.49 kWh
Water Usage per 100 LBS: 23.9 gal
Refrigerant: R-404A CFC-free
Voltage: 115/60/1
Amps: 11.5
Dimensions (LxWxH): 22 x 24.5 x 21.5 in
BTU per Hour: 3,300 (average), 4,500 (peak)
Operating Temperature (Air): 35° to 110° F
Operating Temperature (Water): 35° to 90° F
