Ice-O-Matic Elevation Series CIM0530HR 525 lbs./day Modular Cube Ice Maker - Remote Cooled

Ice-O-Matic Elevation Series CIM0530HR 525 lbs./day Modular Cube Ice Maker - Remote Cooled

* Image is a representation. Actual product may vary based on model, size, and options selected.

Ice-O-Matic Elevation Series CIM0530HR 525 lbs./day Modular Cube Ice Maker - Remote Cooled with bins
$2,855.01
Distributor Stock (Usually Ships Out In 4-7 Business Days)
Show My Final Price
X

Available options:

Click for Available Options
SKU: CIM0530HR
CE
NSF
UL C US

Overview

In a hurry? Check out these key benefits!

  • Space-saving 30 in. modular remote-cooled cube ice machine capable of producing up to 525 lbs. of half cube (3/8 in. x 7/8 in. x 7/8 in.) ice per day
  • Constructed of BPA-free plastic and recyclable materials, this ice maker is designed to be up to 20% more energy efficient than other models and exceeds 2018 DOE regulations
  • Dual Exhaust technology allows hot air to be discharged from the top or side of the unit
  • Universal Smart Harness™ control board simplifies servicing and installation through digital diagnostics and common configuration
  • Crevice-free food zone is seamless and entirely sealed off from mechanical parts making cleaning and sanitation a breeze
  • Built in Agion® heightens antimicrobial protection and One-Touch Cleaning makes sanitizing and descaling the ice maker incredibly easy
  • Extended seven-year evaporator warranty available through Ice-O-Matic's water filter registration program

Sporting a compact 30 in. design, Ice-O-Matic's Elevation Series CIM0530HR 525 lbs./day modular remote-cooled cube ice maker is full of environmentally friendly features and a great option for small kitchens or tight spaces. The CIM0530HR is capable of producing up to 525 lbs. of half cube (3/8 in. x 7/8 in. x 7/8 in.) ice per day, built with high-quality recyclable materials and BPA-Free plastic, and capable of producing crystal clear ice more efficiently. Dual Exhaust technology allows hot air to be discharged through either the top or the side of the ice maker which increases installation flexibility and decreases the potential of obstructed exhaust. The Universal Smart Harness™ control board utilizes digital diagnostics, universal components, and common configurations to make this ice machine as user-friendly as possible. The CIM0530HR has a seamless, crevice-free food zone that's completely sealed off from all mechanical hardware, preventing contamination; Agion® optimizes antimicrobial protection. Snap-in/snap-out components are dishwasher-safe, making your ice machine easier and less time consuming to clean, while One-Touch Cleaning capabilities help maintain the quality of the CIM0530HR.

These standard features all are available with no additional money, inventory, or kits required for installation.

Hardwired

This product does not come with a cord and will need to be hardwired by an electrician when it is installed

Check out Ice-O-Matic's extended seven-year evaporator warranty! You can qualify for this warranty extension by purchasing a single filter water filtration system with your ice machine, registering your ice machine and filter, and replacing the filter cartridge every six months.

Click here for more information about Ice-O-Matic's Elevation Series modular cube ice machines.

This Ice Maker Pairs Well With:

Ice-O-Matic IFQ1 - Single Filter Water Filtration System

IFQ1 - Single Filter Water Filtration System

Replacement Cartridges Sold Separately

Check it out
Ice-O-Matic Model B55PS - 556 lbs Ice Storage Bin

Ice-O-Matic Model B55PS Ice Storage Bin

Capacity: 556 lbs. No adapter kit required to pair with this ice machine.

Check it out Alternative Models

Similar Items:

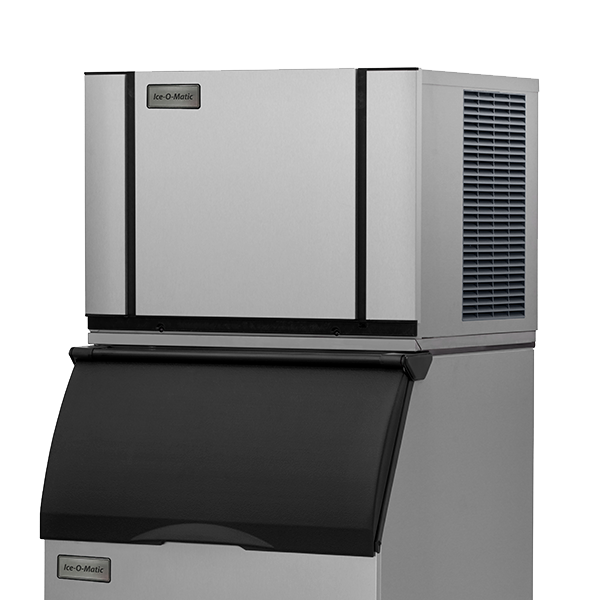

Ice-O-Matic Elevation Series CIM0530FR 510 lbs./day Modular Cube Ice Maker - Remote Cooled

CIM0530FR Modular Cube Ice Maker

Full Cube, Remote-Cooled

Check it out Alternative Models

Not sure which ice maker is best for you? Check out these helpful blog posts!

Features

Product Features

  • Space-saving design and dual exhaust allow hot-air to discharge from the side or top of the unit adding flexibility to installation and limiting the potential of obstructed exhaust
  • Constructed with BPA-free plastic, recyclable parts, and digital controls to monitor energy use making this ice machine up to 20% more energy efficient than other leading models
  • Food zone built with BPA-free plastic parts that snap in and out and are dishwasher safe, making cleaning simple and efficient
  • Easily removable and dishwasher safe water distribution tube eliminates the hassle of bottle brushes when cleaning
  • One-touch cleaning system for sanitizing, and descaling with LED signals to notify you when cleaning is required
  • Universal Smart Harness™ control board allows for simple access, digital diagnostics, and common configuration, making installing and servicing simpler than ever
  • Agion® technology is permanently integrated into essential food zone area providing consistent and high-quality antimicrobial protection.

Commercial Warranty

  • Ice Maker: 3 years parts and labor
  • Evaporator and Compressor: 5 years parts
  • Evaporator: 7 years parts and labor**

**only when enrolled in Ice-O-Matic's water filter registration program

Ice-O-Matic Water Filter Registration Program

If you purchase an Ice-O-Matic IFQ1 Single Filter Water Filtration System with your cube ice maker, register your ice machine and your water filter, and replace the water filter cartridge every six months, you will receive seven years of parts and labor coverage on the evaporator.

Specs

Specifications: Manufacturer: Model: ENERGY STAR Certified: Width: Depth: Height: Weight: Cond. Unit: Ice Shape: Ice Cube Dimensions in. (mm.): Ice Production per 24 hrs. (70° F air/50° F water): Ice Production per 24 hrs. (90° F air/70° F water): Potable Water Usage per 100 lbs. of Ice:* Condenser Water Usage per 100 lbs. of Ice:*
Ice-O-Matic CIM0530FA Yes 30 1/4 in. 24 1/4 in. 21 1/4 in. 155 Air Full Cube 7/8 (22) x 7/8 (22) x 7/8 (22) 505 lbs. (229 kg.) 380 lbs. (172 kg.) 19.9 gallons N/A
Ice-O-Matic CIM0530FR No 30 1/4 in. 24 1/4 in. 21 1/4 in. 160 Remote Full Cube 7/8 (22) x 7/8 (22) x 7/8 (22) 510 lbs. (231 kg.) 405 lbs. (184 kg.) 19.6 gallons N/A
Ice-O-Matic CIM0530FW No 30 1/4 in. 24 1/4 in. 21 1/4 in. 155 Water Full Cube 7/8 (22) x 7/8 (22) x 7/8 (22) 515 lbs. (234 kg.) 460 lbs. (209 kg.) 20 gallons 181 gallons
Ice-O-Matic CIM0530HA Yes 30 1/4 in. 24 1/4 in. 21 1/4 in. 155 Air Half Cube 3/8 (10) x 7/8 (22) x 7/8 (22) 520 lbs. (236 kg.) 390 lbs. (177 kg.) 19.9 gallons N/A
Ice-O-Matic CIM0530HR No 30 1/4 in. 24 1/4 in. 21 1/4 in. 160 Remote Half Cube 3/8 (10) x 7/8 (22) x 7/8 (22) 525 lbs. (238 kg.) 415 lbs. (188 kg.) 19.6 gallons N/A
Ice-O-Matic CIM0530HW No 30 1/4 in. 24 1/4 in. 21 1/4 in. 155 Water Half Cube 3/8 (10) x 7/8 (22) x 7/8 (22) 530 lbs. (240 kg.) 470 lbs. (213 kg.) 20 gallons 181 gallons

*Specs calculated 90° F air/70° F water.

Ice output per day varies based upon environmental conditions and size and type of ice. The Specification Sheet provided by the manufacturer is based on the max output of a half cube machine operating under ideal conditions. Full cube ice machines tend to produce a few less pounds of ice per day. To see a full comparison between half and full cube ice makers, see the Differentiated Spec Sheet document provided below.

Brand

For over 50 years, Ice-O-Matic has been providing customers with the simplest, most reliable and easy-to-use commercial ice machines. Ice-O-Matic has been a leader in the development of new commercial technologies, offering a full line of cubers, flakers and their own patented Pearl Ice machines. They sell the highest quality storage bins, dispensers and water filters in the business, and their products are backed by the industry's longest warranties.
